Quarky Creator's Kit Course

Topic 4: Motor Assembly

Lesson 2: Basics

A mounting plate is provided with dedicated holes for the motor brackets of the High Speed Motors.

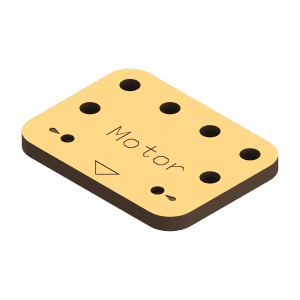

Motor Mount - a golden perforated wooden plate with 'Motor' label and dedicated bracket holes
Motor Mount

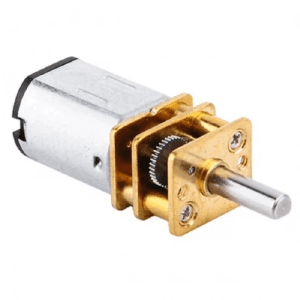

High Speed Motor - a silver motor that spins at high speeds
High Speed Motor
Motor Assembly - a view of a complete assembly containing a mounting plate, high speed motor and a wheel

Parts Used

Item NameTypeQty
Motor MountWooden Part1
M2 Bolt (16mm)Fastener2
High-Speed MotorElectronic Part1
Motor Bracket (with M2 nuts included)Accessory1
WheelAccessory1
Exploded view diagram showing how the High Speed Motor, Motor Bracket, Motor Mount, and Wheel are assembled together using M2 bolts

Assembly Steps

  • Insert the High-speed motor into the Motor bracket.
  • Align the holes of the Motor Mount (wooden plate) with the bracket holes and insert M2 bolts (16mm) through them.
  • Insert the inner part of the Wheel onto the shaft of the motor.
  • Follow the same steps for the assembly of the other three sets of wheels and motors.
  • Your Motor Mount Assembly is now ready to be attached to your robot.
